Description
SPECIFICATIONS

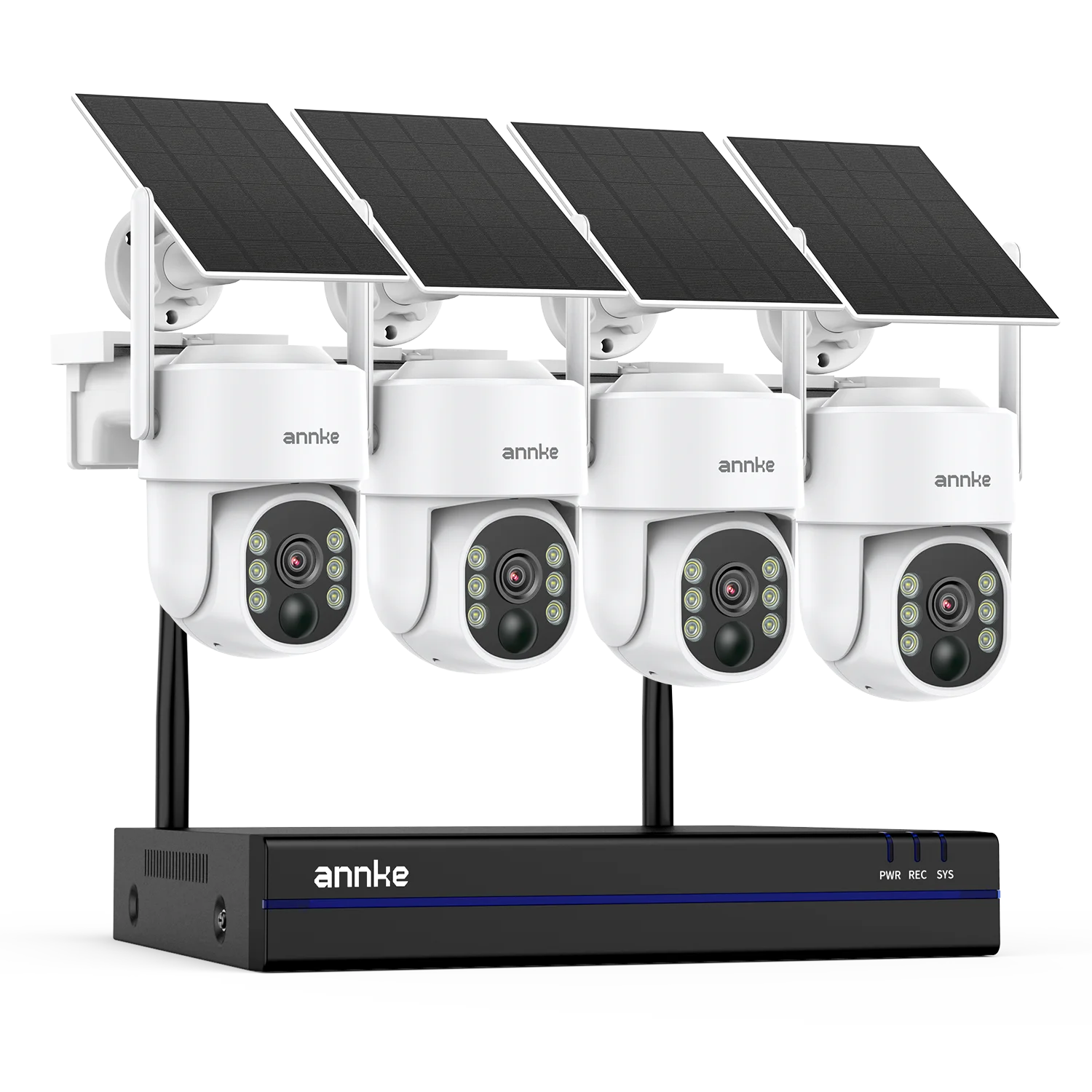

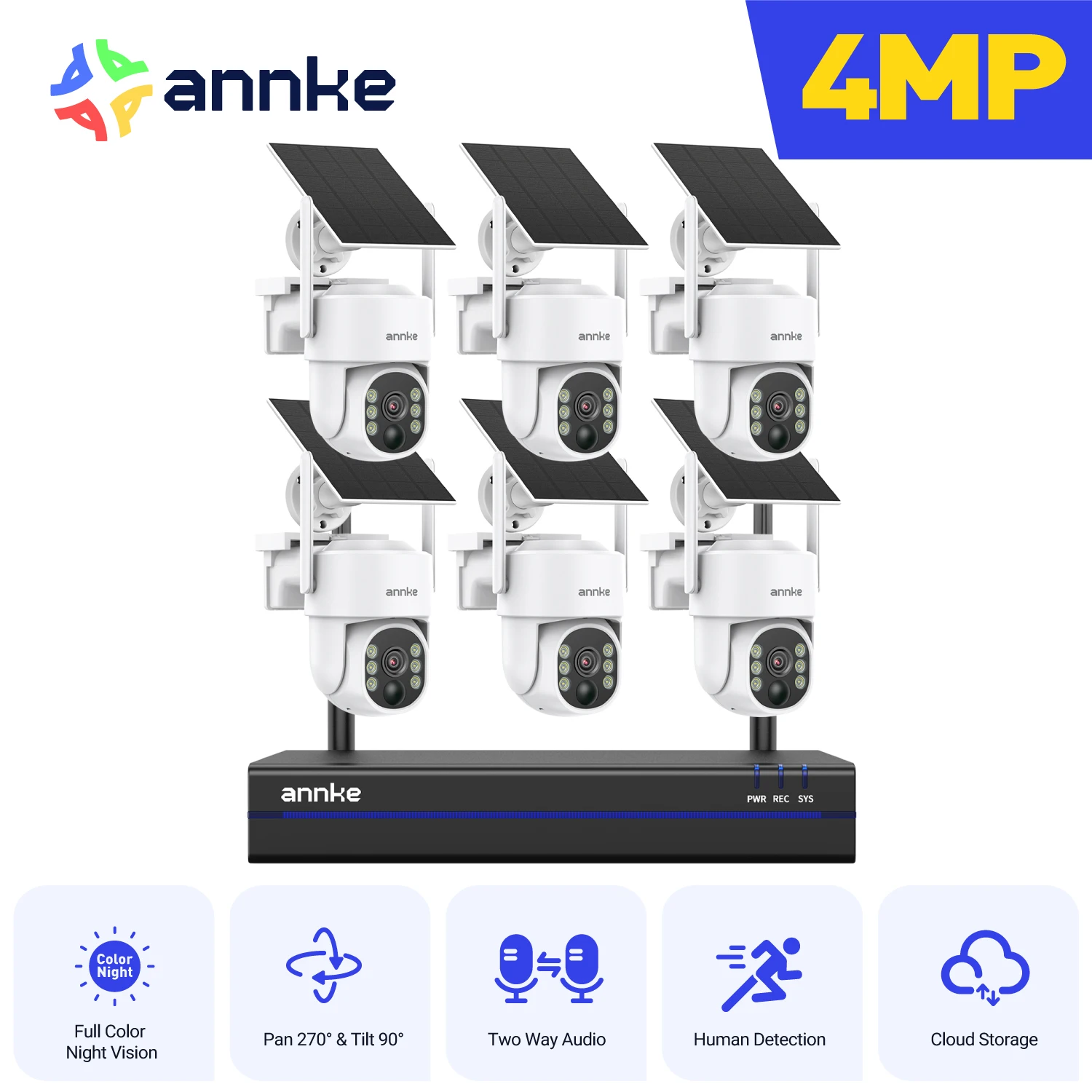

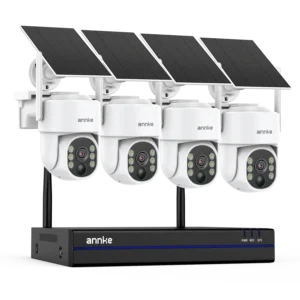

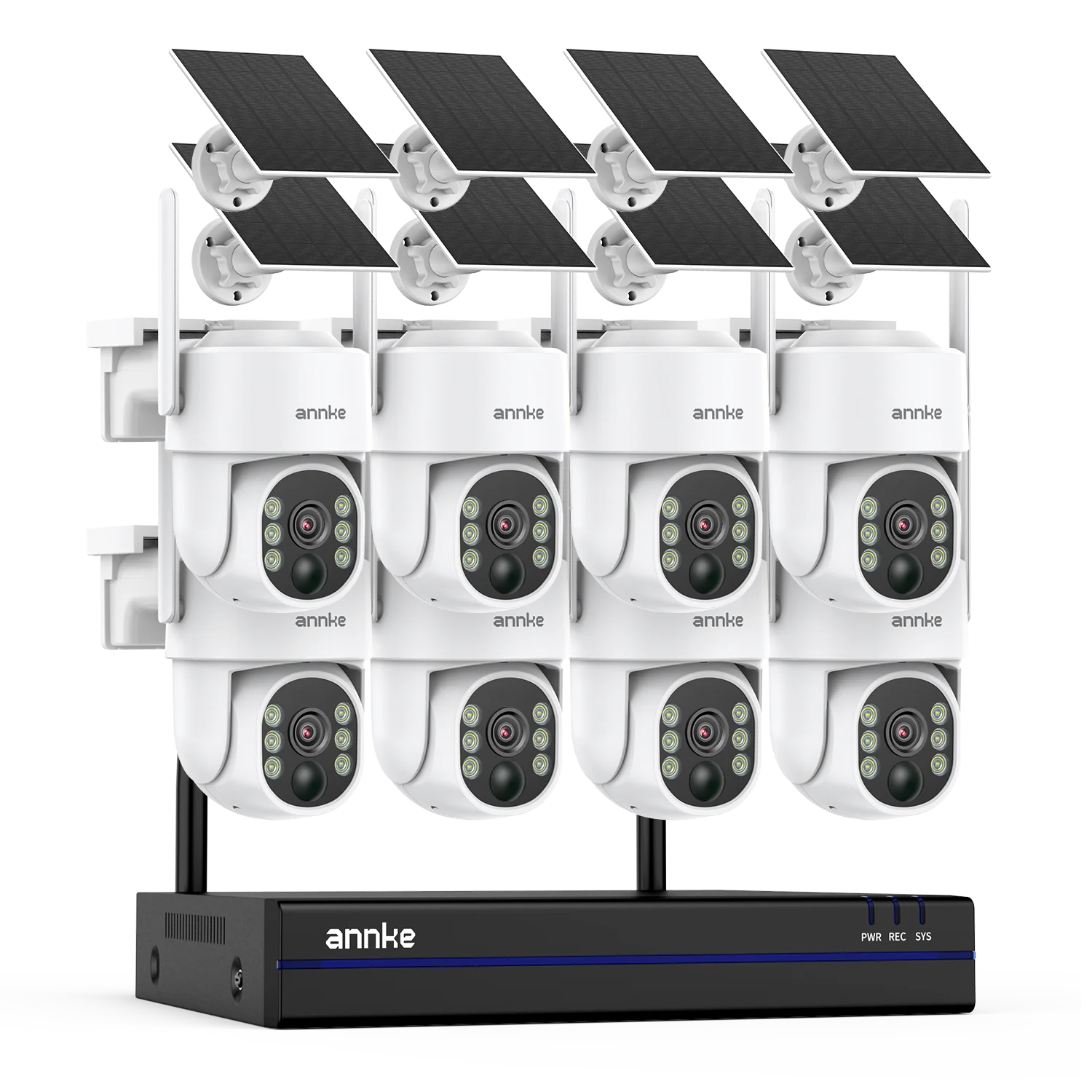

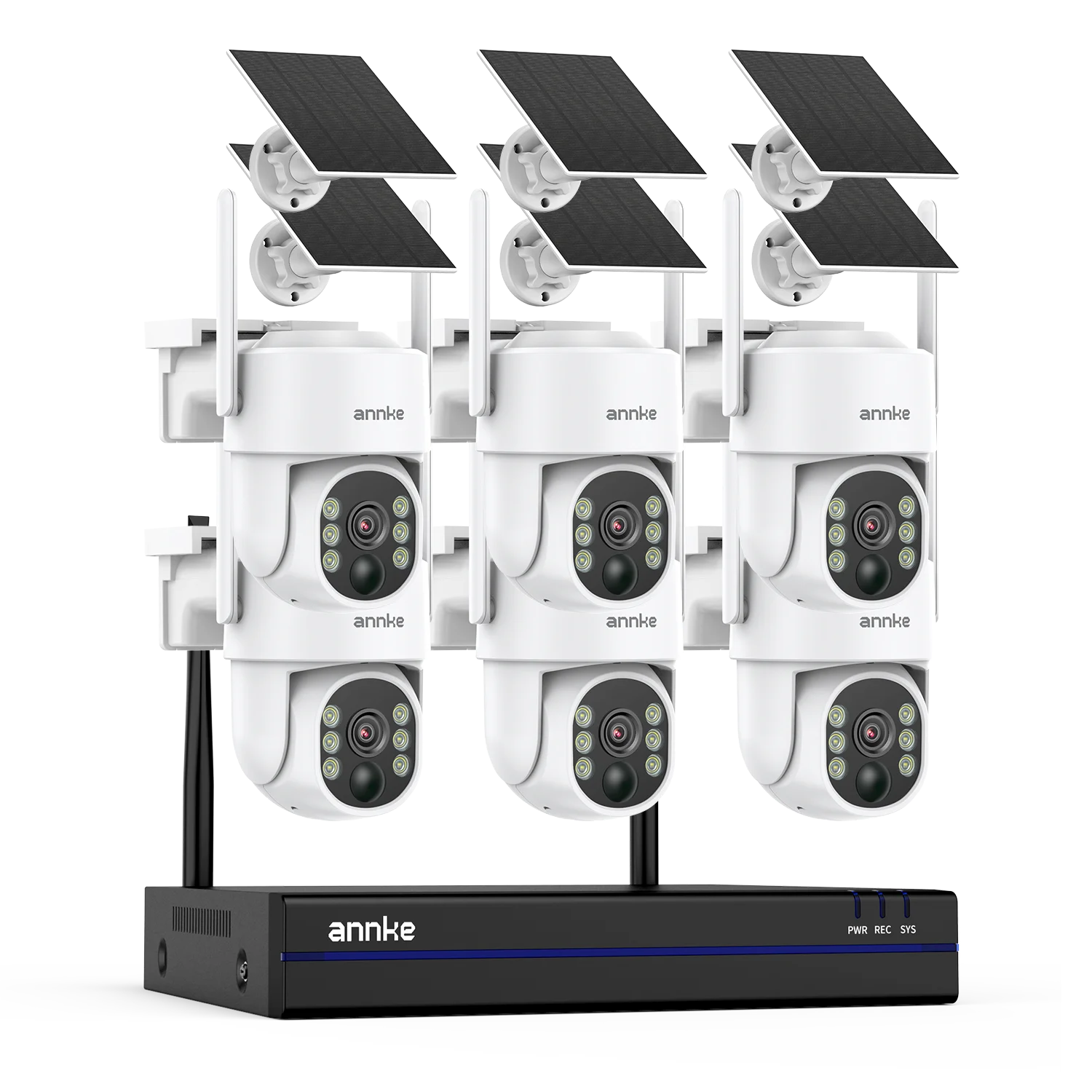

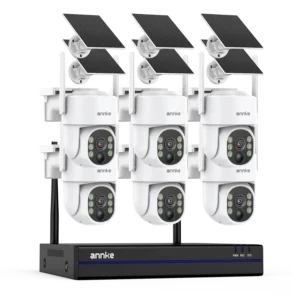

Brand Name: ANNKE
Cable Length: None
Certification: CE
High-concerned chemical: None
Model Number: N98WHR-I81bm
Origin: Mainland China
PCS of Camera: 4PCS,8PCS
Resolution: 4MP
TV System: NTSC,PAL
Video Input: 16 Channel
|
NVR |
||
|
Video Format |
H.264+ |
|
|
IP Video Input |
16CH Wireless |
|
|
Video Output |
HDMI Up to 4K |
|
|
Audio Output |
Support |
|
|
Max Recording Resolution |
Up to 8M |
|
|
Max Playback Resolution |
Up to 8M |
|
|
Max Playback Channel |
4CH |
|
|
Max Playback Capacity |
4CH 5MP/2CH 8MP |
|
|
Hard Drive |
HDD |
1 SATA interface |
|
HDD Capacity |
Up to 8TB capacity(2.5&3.5 inches) |
|
|
External Interface |
Network Interface |
RJ45x1(10/100M) |
|
Wireless antenna |
3 Ports(2.4G&5.8G dual-band，IEEE802.11b/g/n/ac) |
|
|
USB |
USB2.0x2 |
|
|
General |
Housing |
Metal for mainpart |
|
Operating Power |
DC12V |
|
|
Power Consumption |
6 W (Without HDD) |
|
|
Working Temperature |
14 °F ~ 131 °F/-10 °C ~ 55 °C |
|
|
Dimensions (W X H X D) |
260 X 245 X 47 mm |
|
|
Weight (Without Hard Disk) |
760 g (Without HDD) |
|
Camera
|
Camera |
Video Resolution |
4MP(2560×1440) |
|
Image sensor |
1/3" Progressive Scan CMOS |
|
|
Video compression |
H.264+ |
|
|
Audio Compression |
G.711A |
|
|
Lens |
4mm |
|
|
Angle of View |
70° |
|
|
Number of Infrared/Color LEDs |
6 |
|
|
Infrared and full color Distance |
Infrared 15m/Color 8m |
|
|
PT |
Horizontal 270°, Vertical 90° |
|
|
Built-in battery |
3.7V/9000mAh 2pcs 21700 |
|
|
Audio Input/output |
Built-in microphone and speaker |
|
|
Mini. Illumination |
0Lux (with infrared led on) |
|
|
Day Night Mode |
Auto change with IR-CUT removable |
|
|
PIR Sensor |
10 meters |
|
|
Bluetooth pairing |
support |
|
|
Internet |
Wireless networks |
2.4G&5.8G dual-band，IEEE 802.11.ax |
|
Wireless Security |
WEP, WPA, WPA2 |
|
|
Remote Access |
P2P |
|
|
General |
Housing |
Plastic |
|
Operating Voltage |
DC 5V |
|
|
Solar power |
Support |
|
|
Storage |
Micro SD(Max 256GB) |
|
|
Operating Temperature |
-20° ~ 50°C(-4°F ~ 122°F) |
|
|
Indoor/Outdoor |
Indoor/Outdoor |
|
|
Weatherproof Rating |
IP65 |
|
|
Mount Option |
Wall mount/Ceiling mount |
|
|
Dimension (L x W x H) |
||
|
Weight |
Additional information
| Color | 16CH NVR 8Pcs Camera, 16CH NVR 4Pcs Camera, 16CH NVR 6Pcs Camera |
|---|---|
| Ships From | United States |
| Build-in HDD | 4T |
