Description

SPECIFICATIONS

Brand Name: HITBOX

Certification: CE

Efficiency(%): 85

Function 1: TIG AC/DC welding machine

Function 2: ARC MMA Stick welding machine

Function 3: TIG pulse welding

High-concerned chemical: None

Is Smart Device: no

MMA/ARC Output Current(A): 20-120A

Model Number: HBT250P AC/DC

Origin: Mainland China

Plug Type: EU Plug

Protection Class: IP21S

Rated Duty Cycle(%): 60

Rated Input Current (A): 26.3

Rated Input Power (KVA): 5.8

Rated Input Voltage (V): AC 220V±10%, 50/60Hz

TIG No-load voltage: 65V

TIG Output Current(A): 10-200A

Welding process: AC DC TIG/ARC

Features:

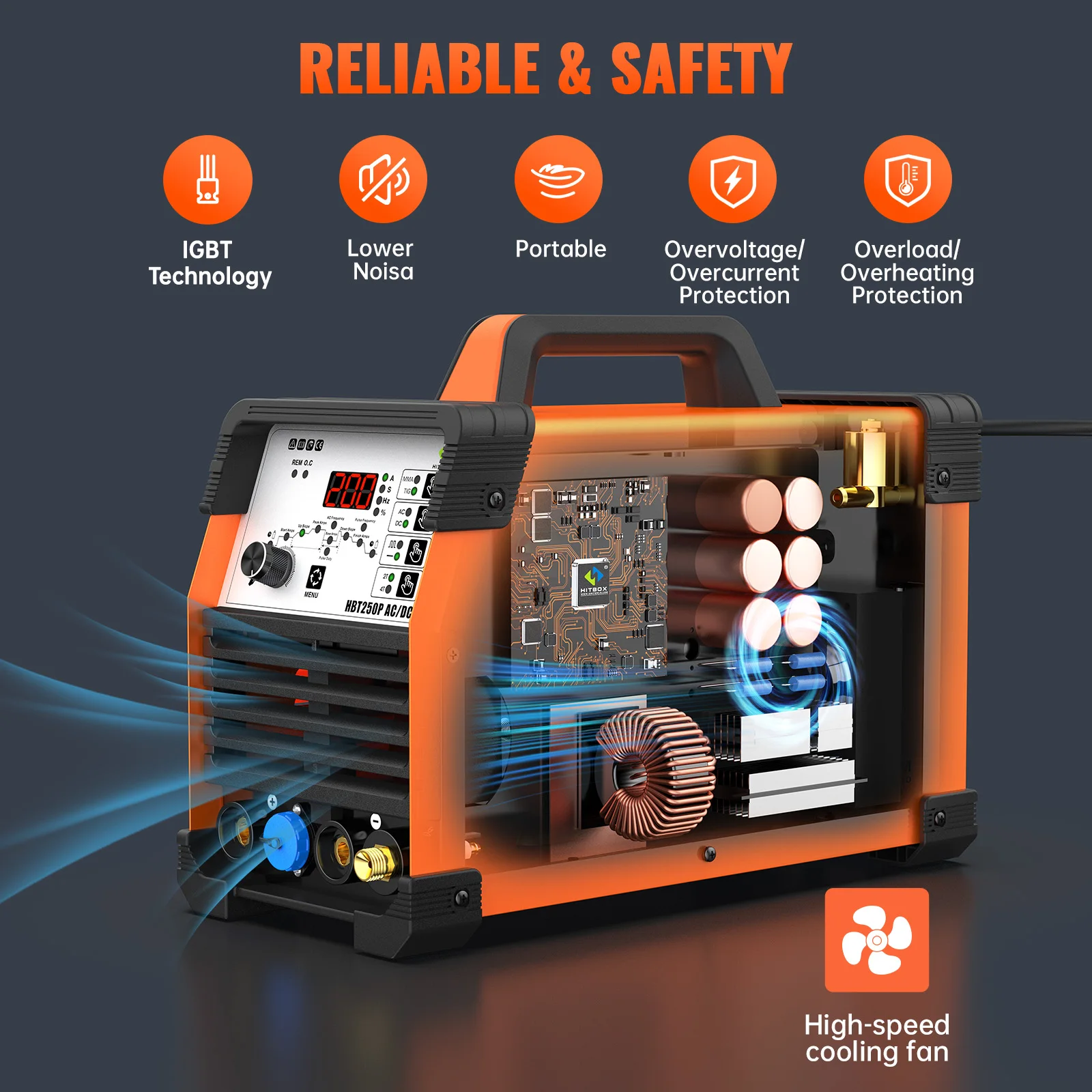

1.Most advanced inverter technology.

2.Power source offer stronger, more concentrated and more stable arc.

3.When stick and work piece get short, its response will be quicker. It means that it is easier to design welding machine with different dynamic characteristics, and it can even be adjusted specially to make arc softer and also harder.

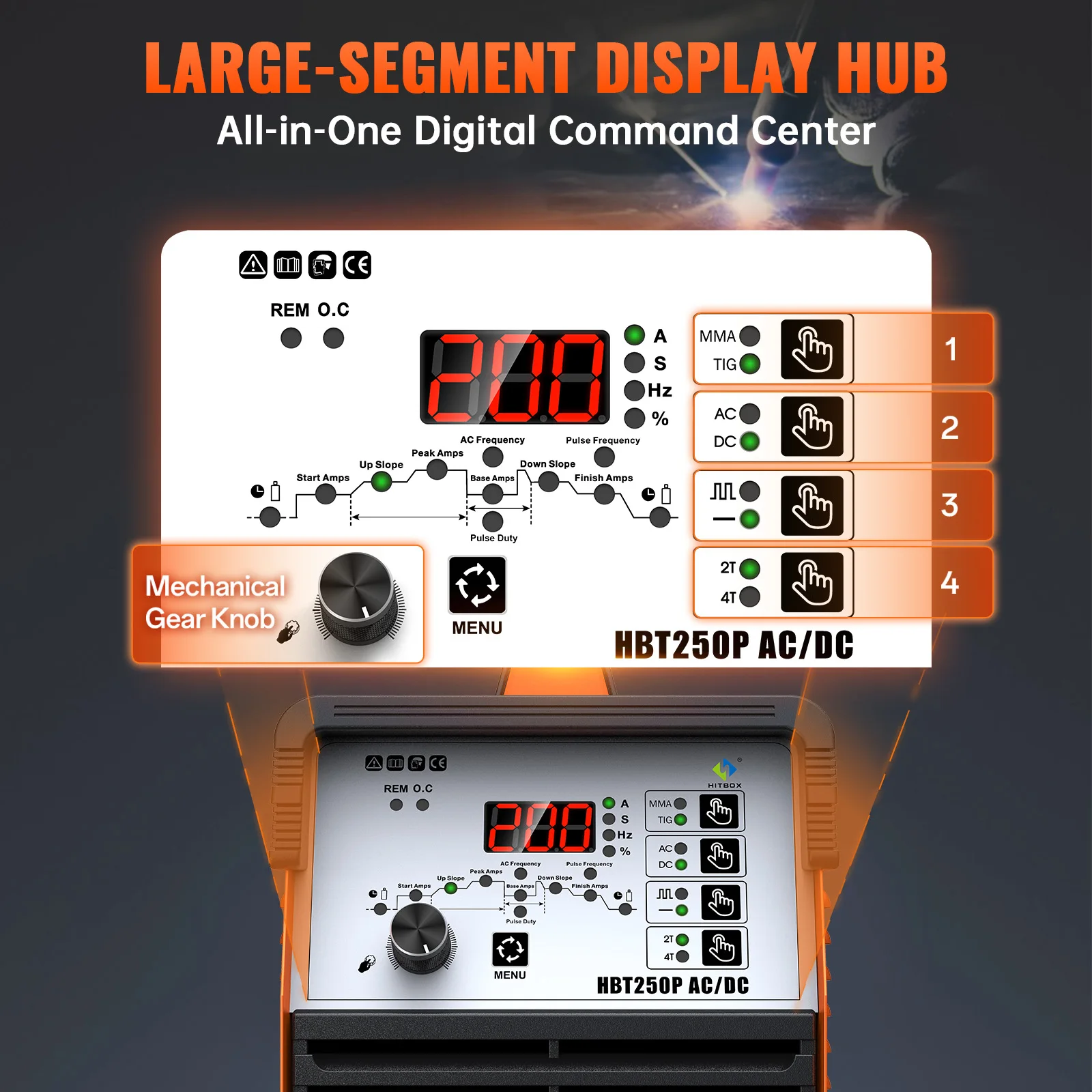

4.TIG welding machine is easy for arc initiation and has the functions of arc initiation current, arc stop current, welding current, basic value current, current ascending time, current descending time, gas delay time, continuous adjustment

What's more, pulse frequency and pulse duty can also be adjusted independently. It has the characteristics of automatic control of arc initiation, arc stop and stable arc, which make the best result for shape and inner quality of the welding surface.

5.multi-use—weld stainless steel, carbon steel, copper and other color metal,

and also can use for traditional electric welding

Specifications:

Brand name: HITBOX

Model: HBT250P ACDC

Rated Input Voltage(V) :AC220V:10%,50/60Hz

Rated Input Power(KVA)5.8

Rated Input Current(A):26.3

TIG Rated Output Current & Voltage:200/18V

MMA/ARC Rated Output Current & Voltage:180A/27.2V

TIG Output Current(A):10-200

MMA/ARC Output Current(A):20-180

MMA/ARC No-load voltage: 67V

TIG No-load voltage:65V

Rated Duty Cycle(%):60

Efficiency(%):85

Protection Class:IP21S

Insulation Class:F

Packing dimension: 480mm*270mm*365mm

Base material: carbon stainless, low-alloy steel,titanium,stainless steel ,aluminum

Welding process :AC DC TIG/ARC

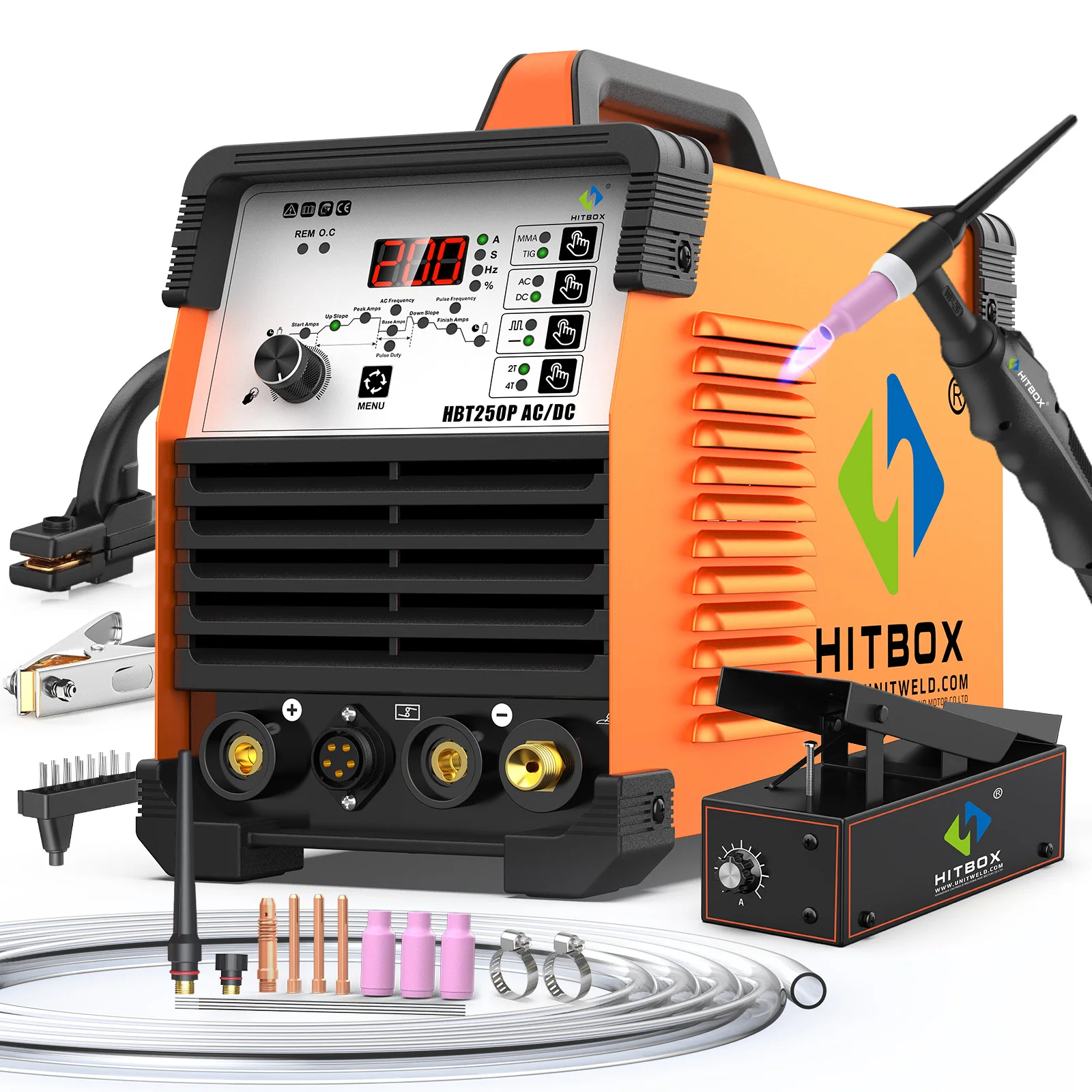

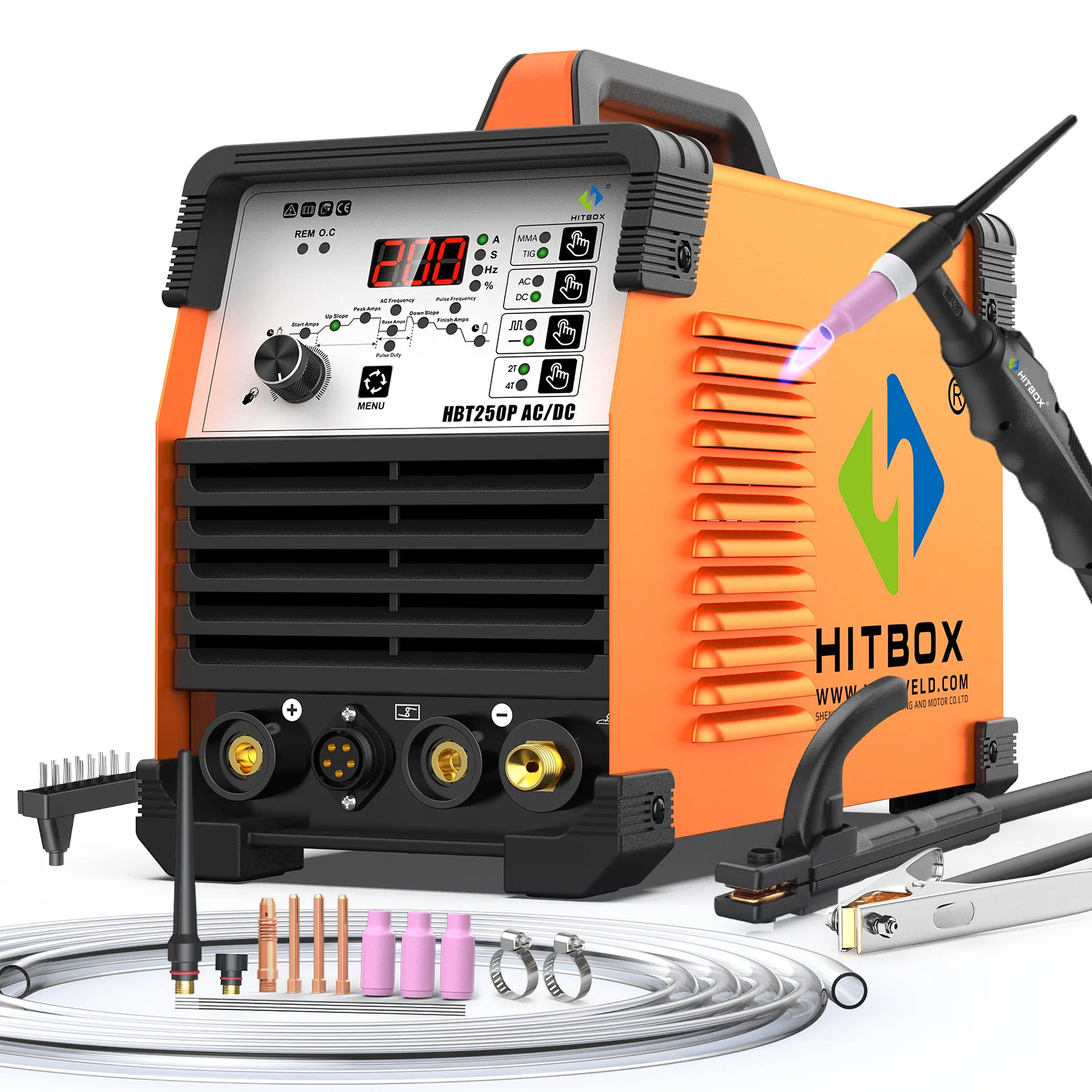

Package Content:

1* TIG Welding Machine

1* 17V Tig torch

1* Electrode holder

1* Earth clamp

1* Pack of tips and nozzles

2*Tungsten Electrodes

1*Manual

Other Items You Can Get:

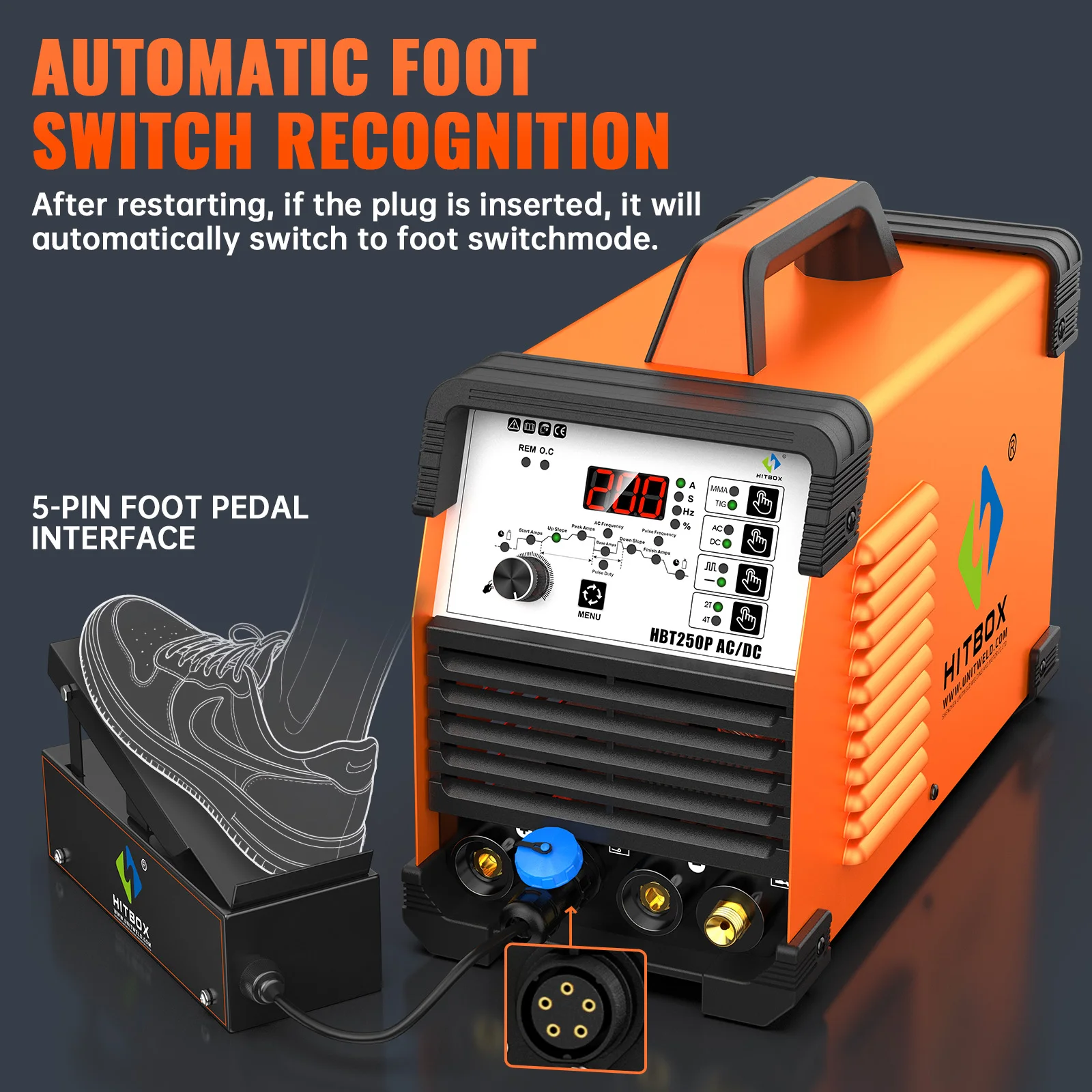

Option "with Foot Pedal": 1* Foot pedal and 1*HBT250P

Option " Only HBT250P":Just a HBT250P Machine x1

Note: Styles may vary between different countries and regions; everything is subject to the actual product received
