Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

High-concerned chemical: None

Input Voltage: 220V

Model Number: HBC65

Origin: Mainland China

Use: Cut

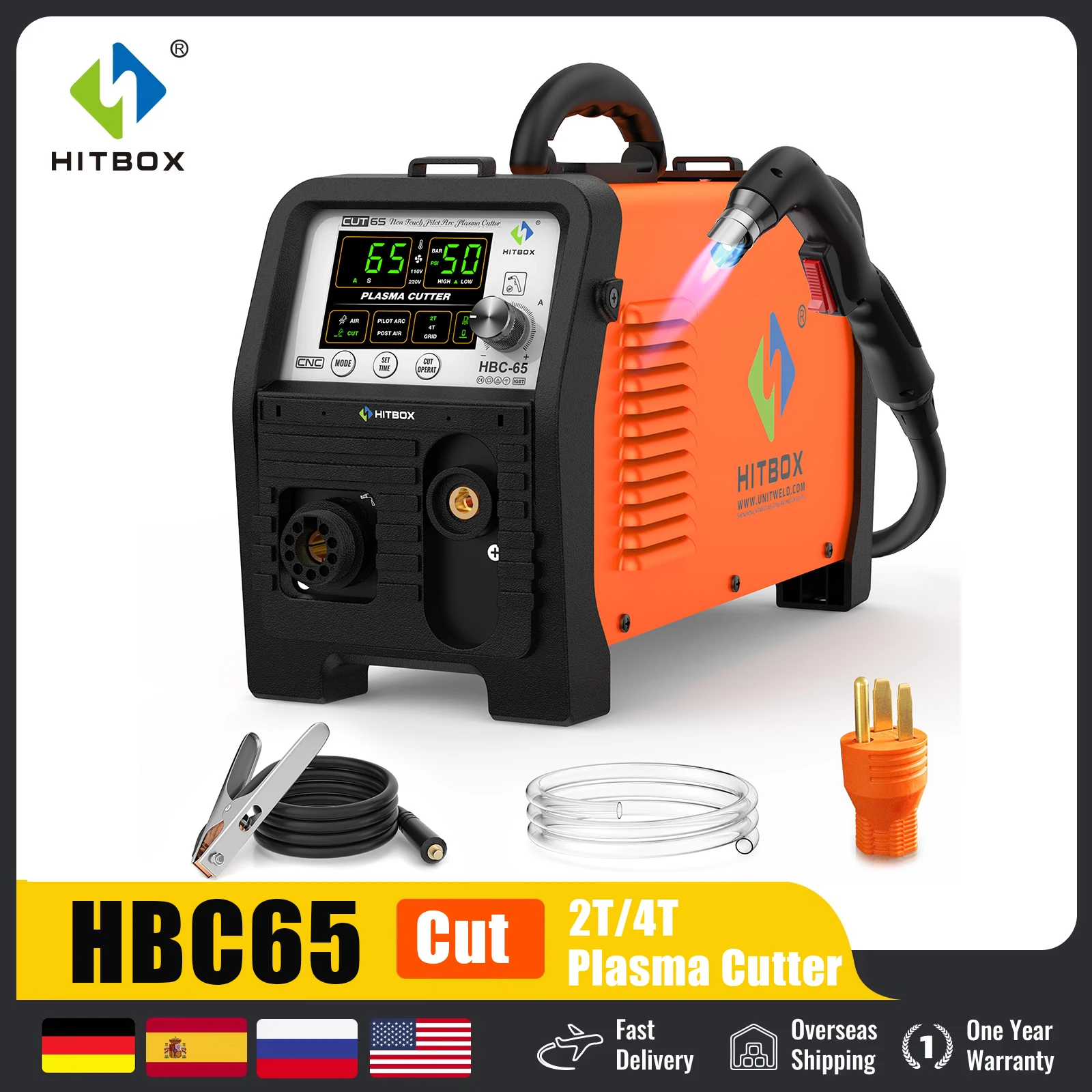

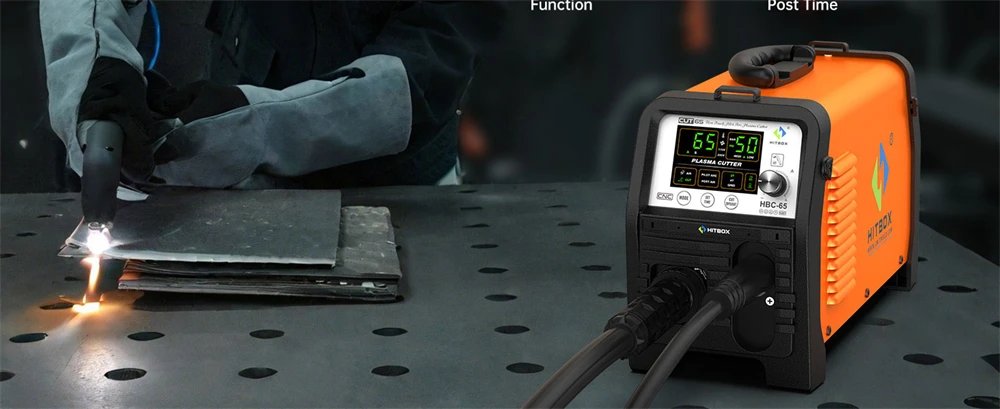

HITBOX HBC65 Plasma Cutter Non-HF Pilot ARC LED Digital Display Cut 1-25mm Stainless Steel 65A Non Touch Plasma Cutting 2T/4T

Model: HBC65

Voltage: 220V

Current:

Display current: CUT/20A-65A

Actual current: CUT/20A-50A

Weight:

Machine weight: 6.33kg

Packaging weight: 9.65kg

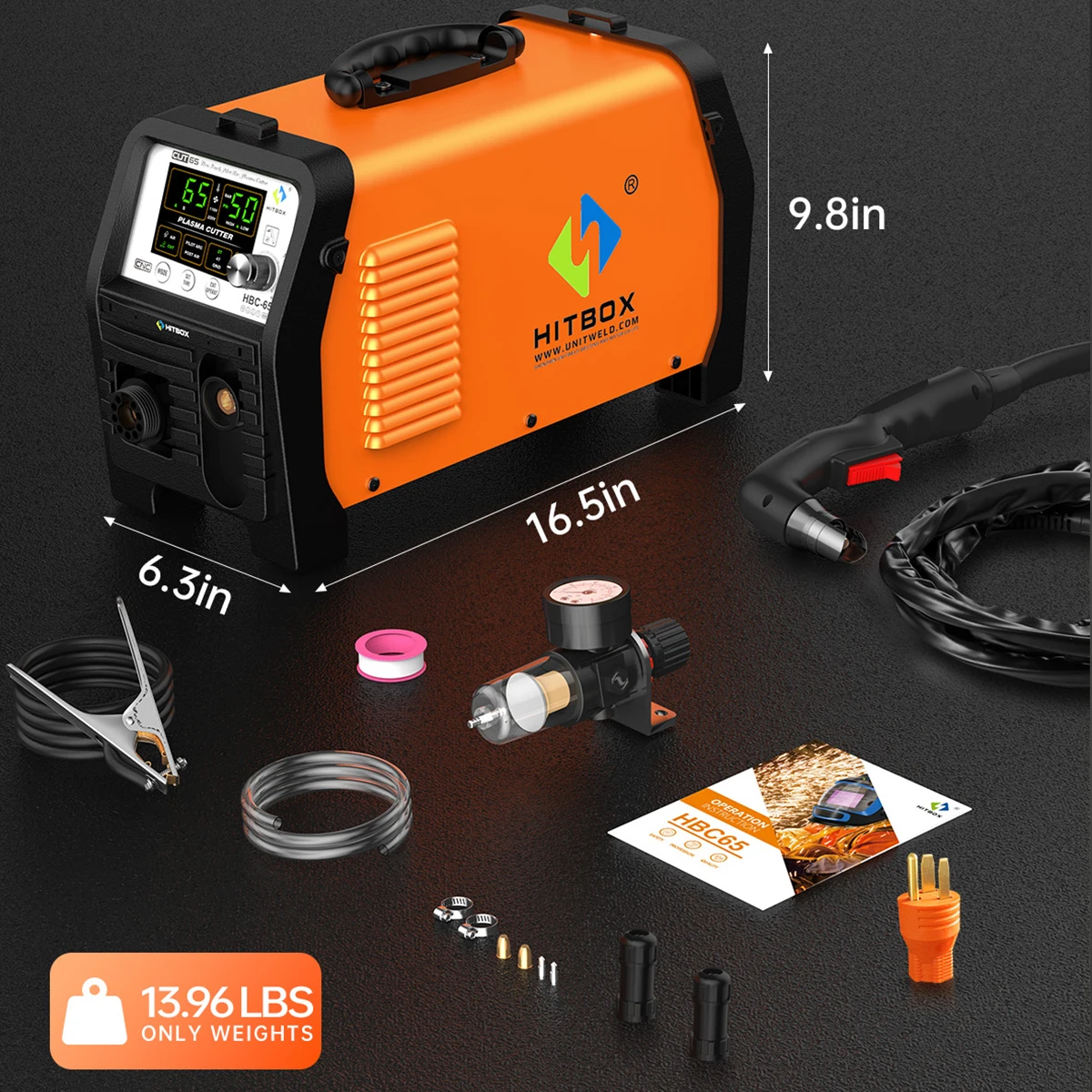

Size:

Machine size: 42x16x25cm

Packaging size: 49.5x22x35.5cm

Function: Low frequency contactless cutting

Welding thickness: quality cutting: 1-10mm; extreme cutting: 10-25mm

Welding material: external compressed aerodynamic cutting, cutting carbon steel, iron, galvanized plate, stainless steel and other conductive metals

Wiring method: CUT ground wire clamping positive electrode

Suitable for: S50 low-frequency gun, compatible with S45

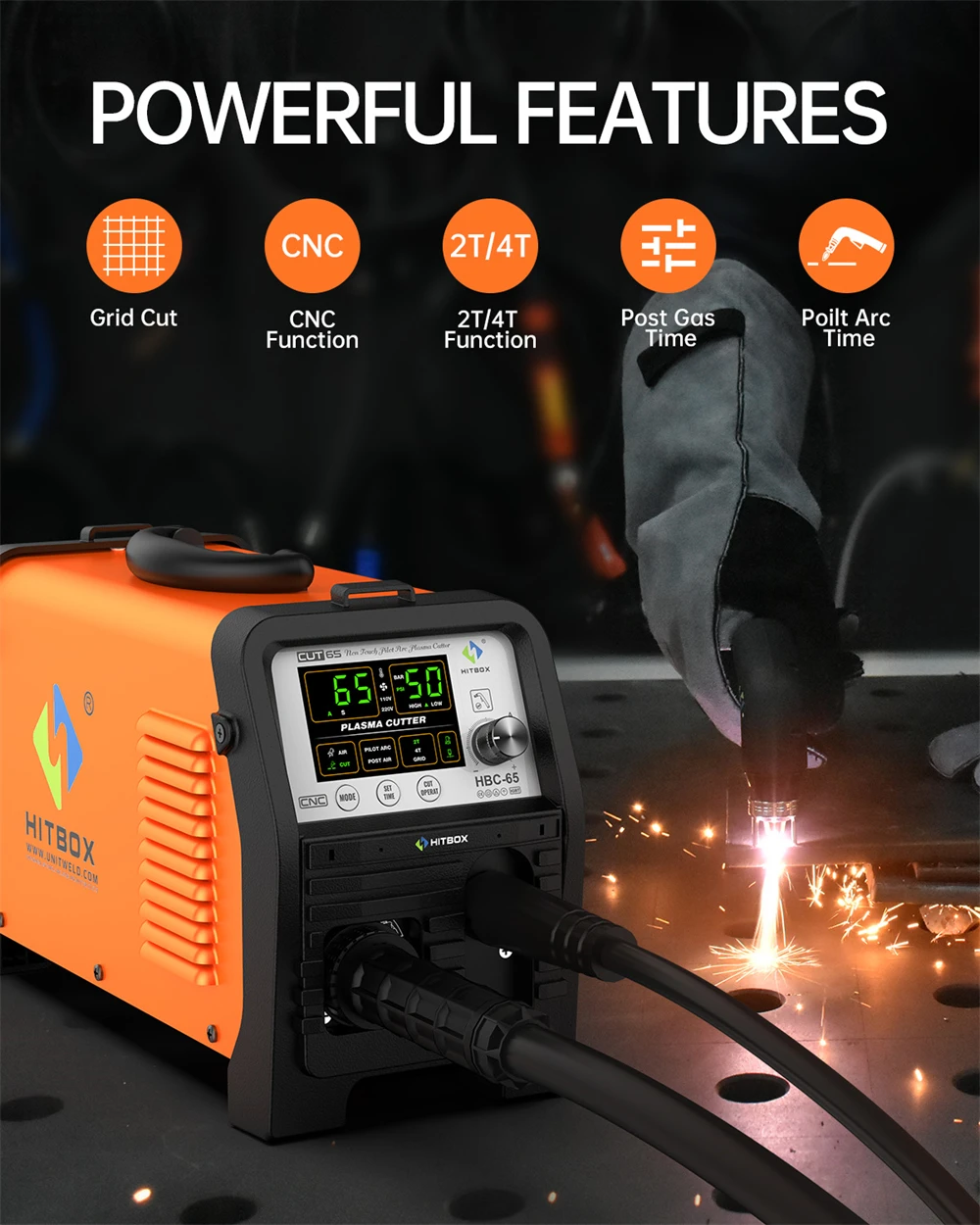

Features:

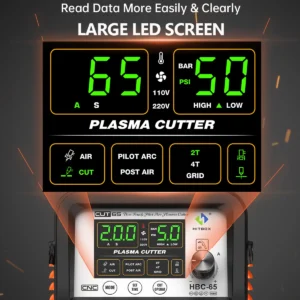

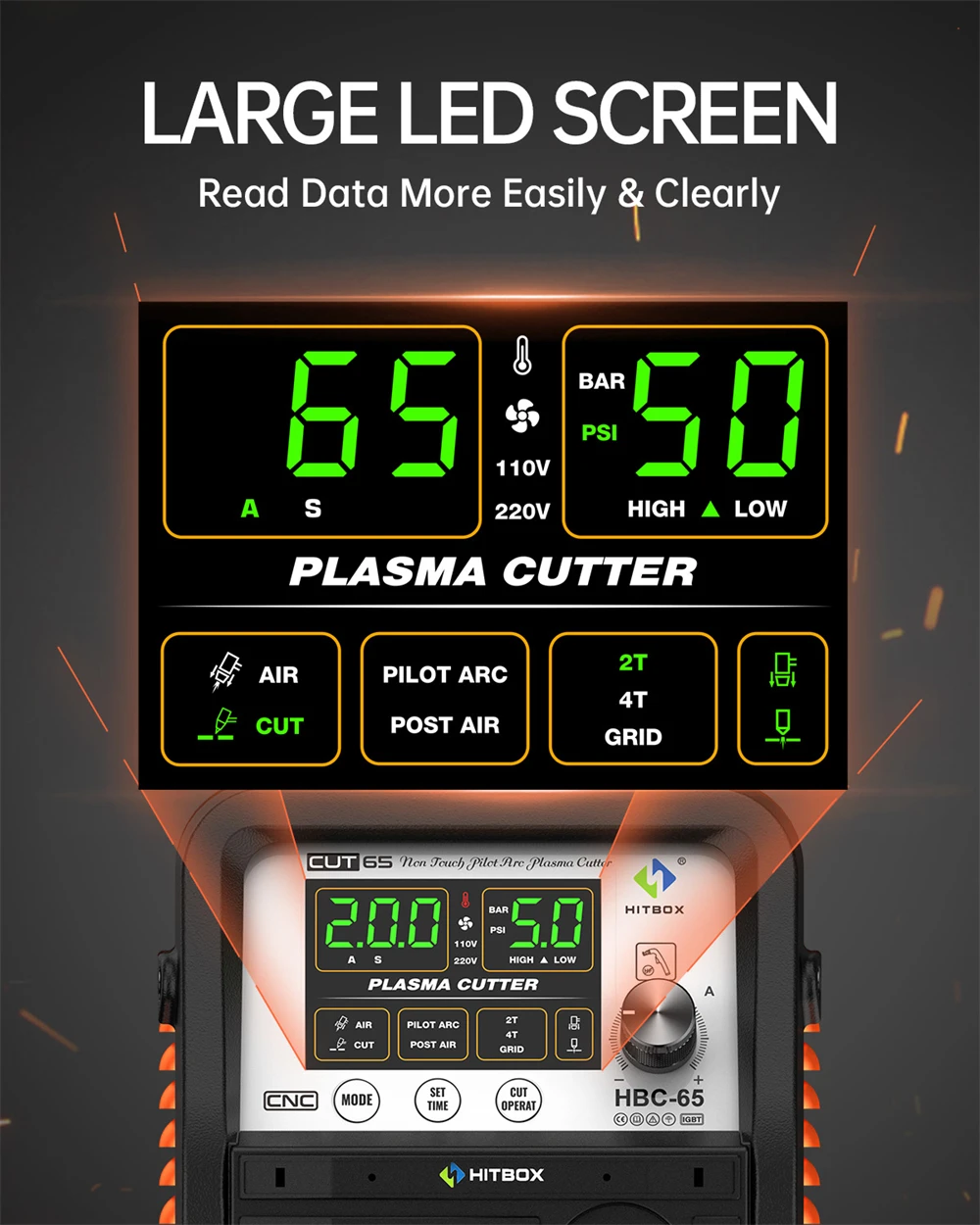

1. Extra large digital screen display

2. 2T/4T/GRID (grid cutting current 25A/Specially used to cut hole plates)

3. The current and air pressure are displayed on the screen to automatically identify whether the air pressure is too high

4. Smart Fan

5. The air time can be adjusted after the arc time is adjustable

6. Under-air pressure protection function

7. The cutting gun prompt function is not installed correctly

Advantages：

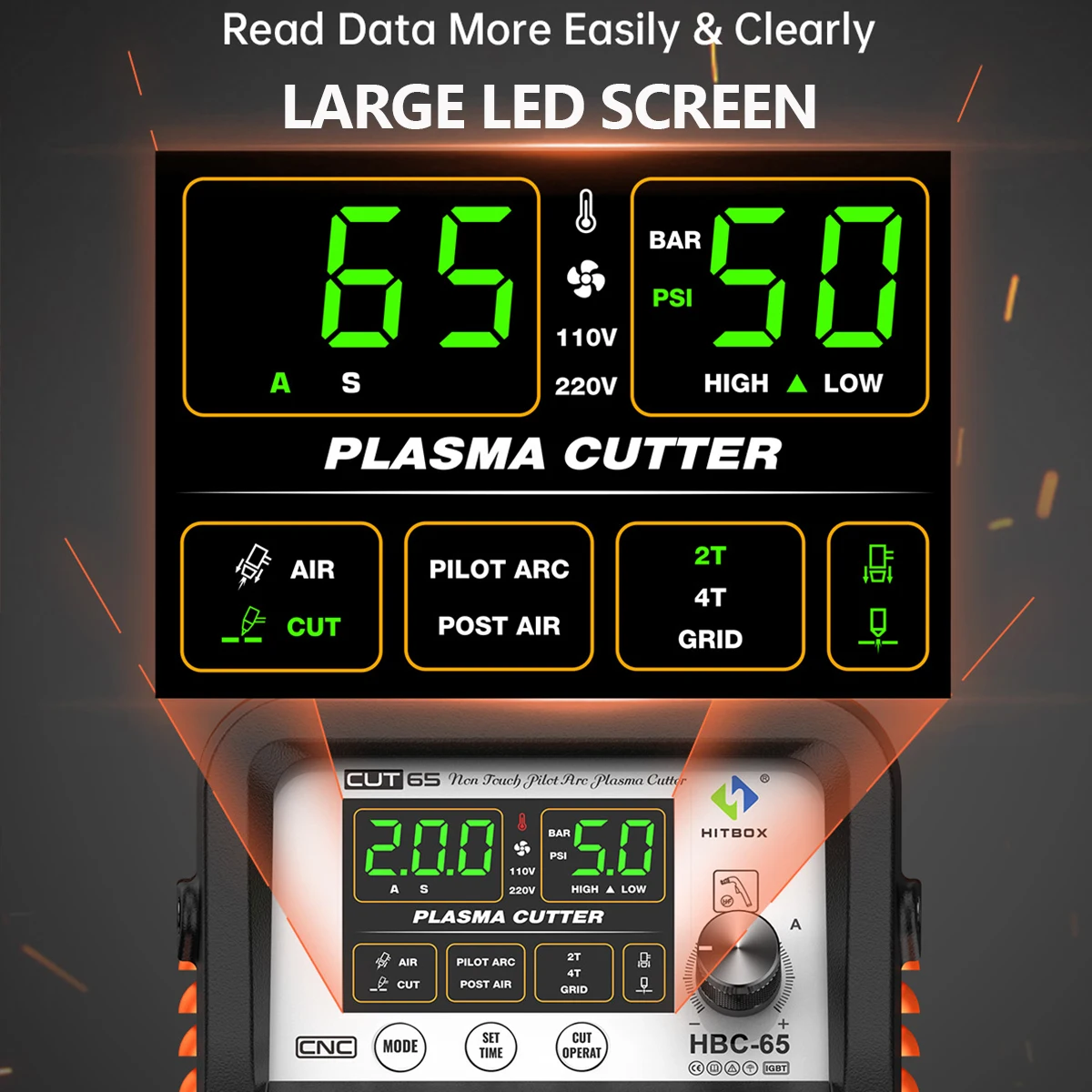

【Upgraded LED digital display and 2T/4T modes】 the HITBOX HBC65 has a high-resolution LED digital display for real-time monitoring of air pressure and current. Easily switch between semi-automatic (2T) and automatic (4T) cutting modes. The error code system allows for quick troubleshooting and saves time.

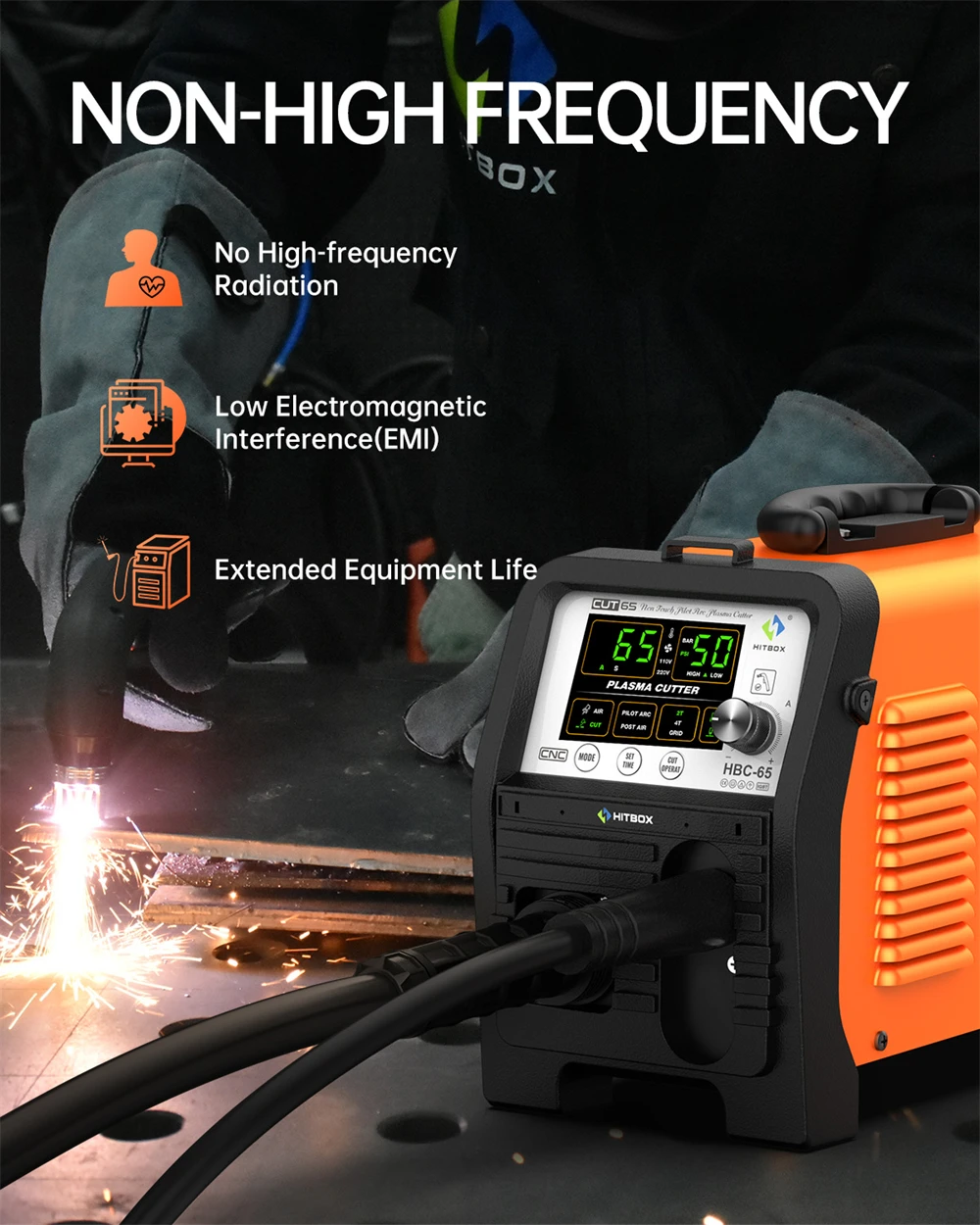

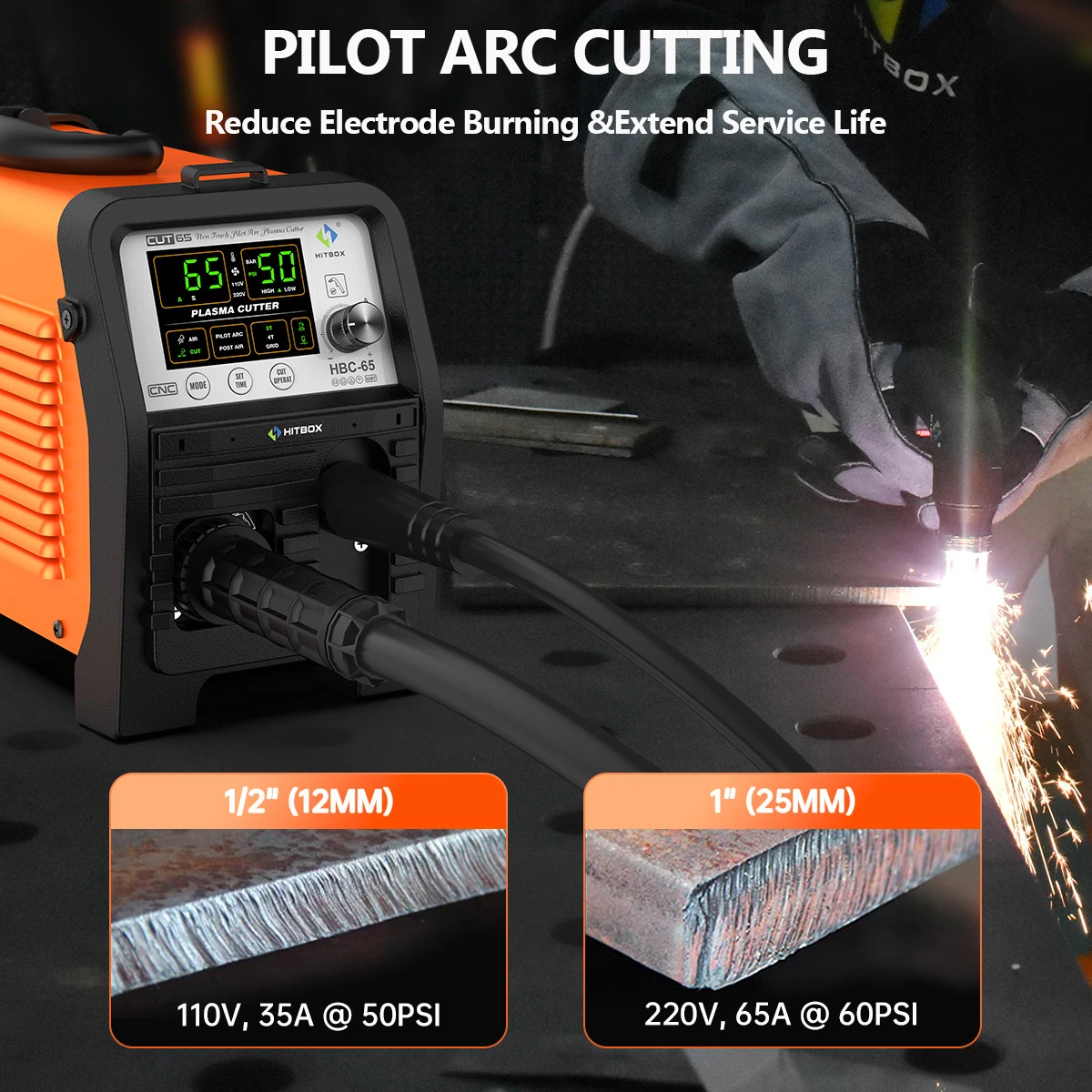

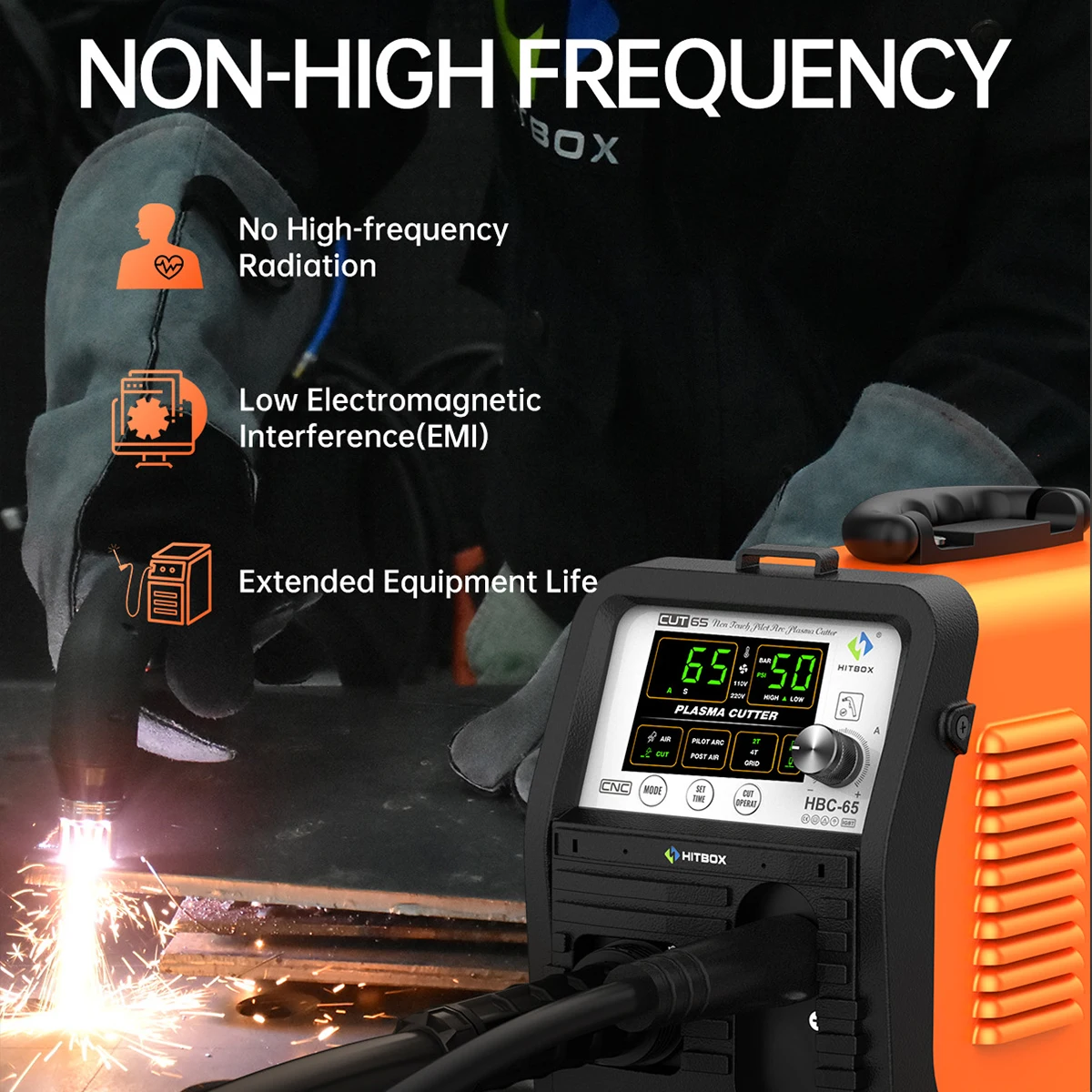

【Low frequency non-contact pilot arc】 With the non-RF technology, the HBC65 starts the cutting process without physical contact. You can start at any point of the metal surface. The low frequency design reduces interference and is safe for ambient electronics and users.

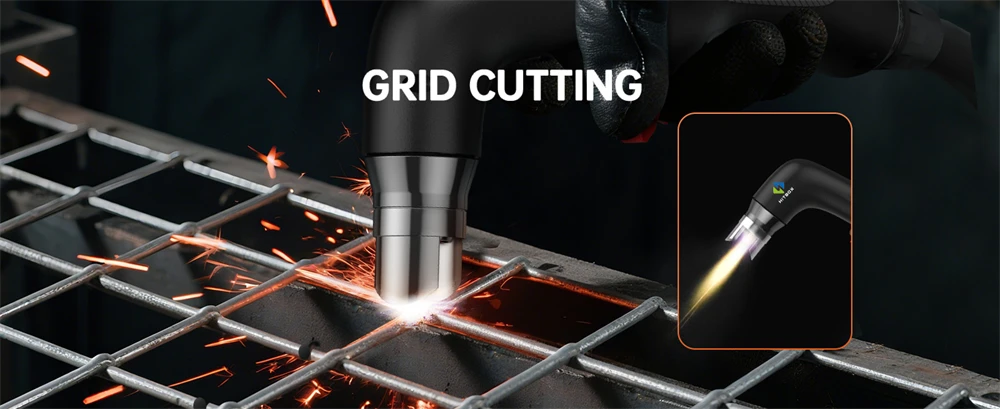

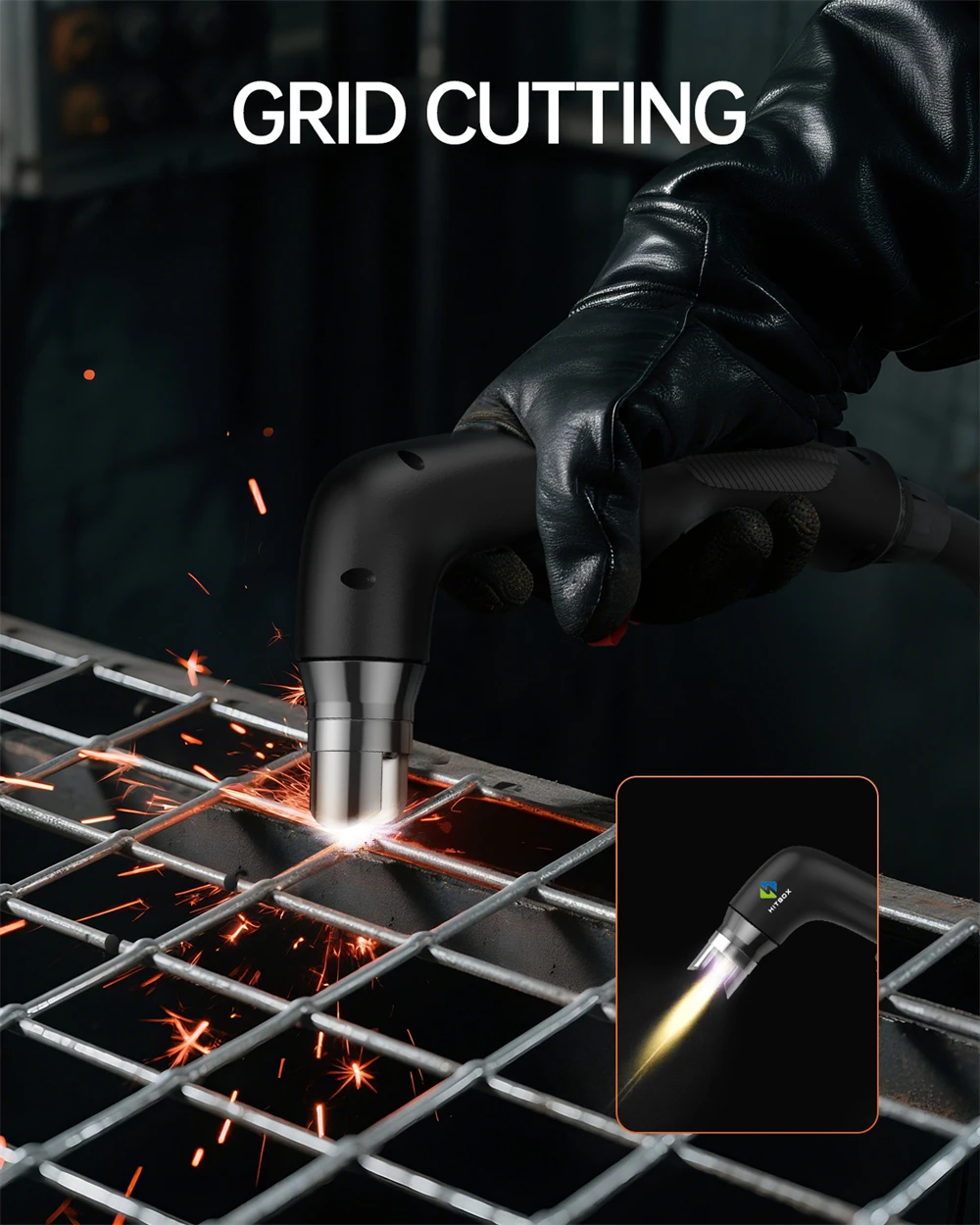

【Exclusive Grid Cutting Function】The HBC65 offers a special grid cutting mode, ideal for perforated sheets and mesh metals. Achieve precise hole patterns (e.g. ventilation grille) with clean edges and minimal post-processing.

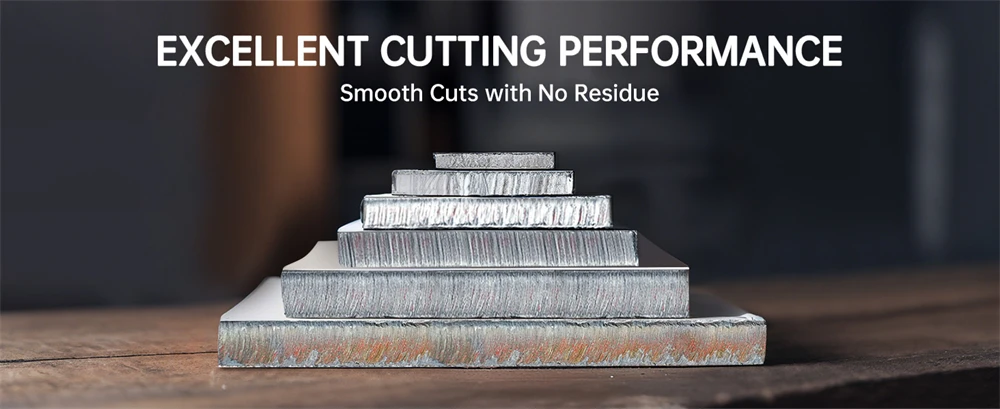

【Extended cutting capacity】 with a maximum cutting thickness of 25 mm and a clean cut at 10 mm, the HBC65 delivers precision and efficiency. Thanks to IGBT inverter technology, it cuts carbon steel, stainless steel and aluminium without any problems. The 60% duty cycle at 45 Amp is suitable for demanding tasks.

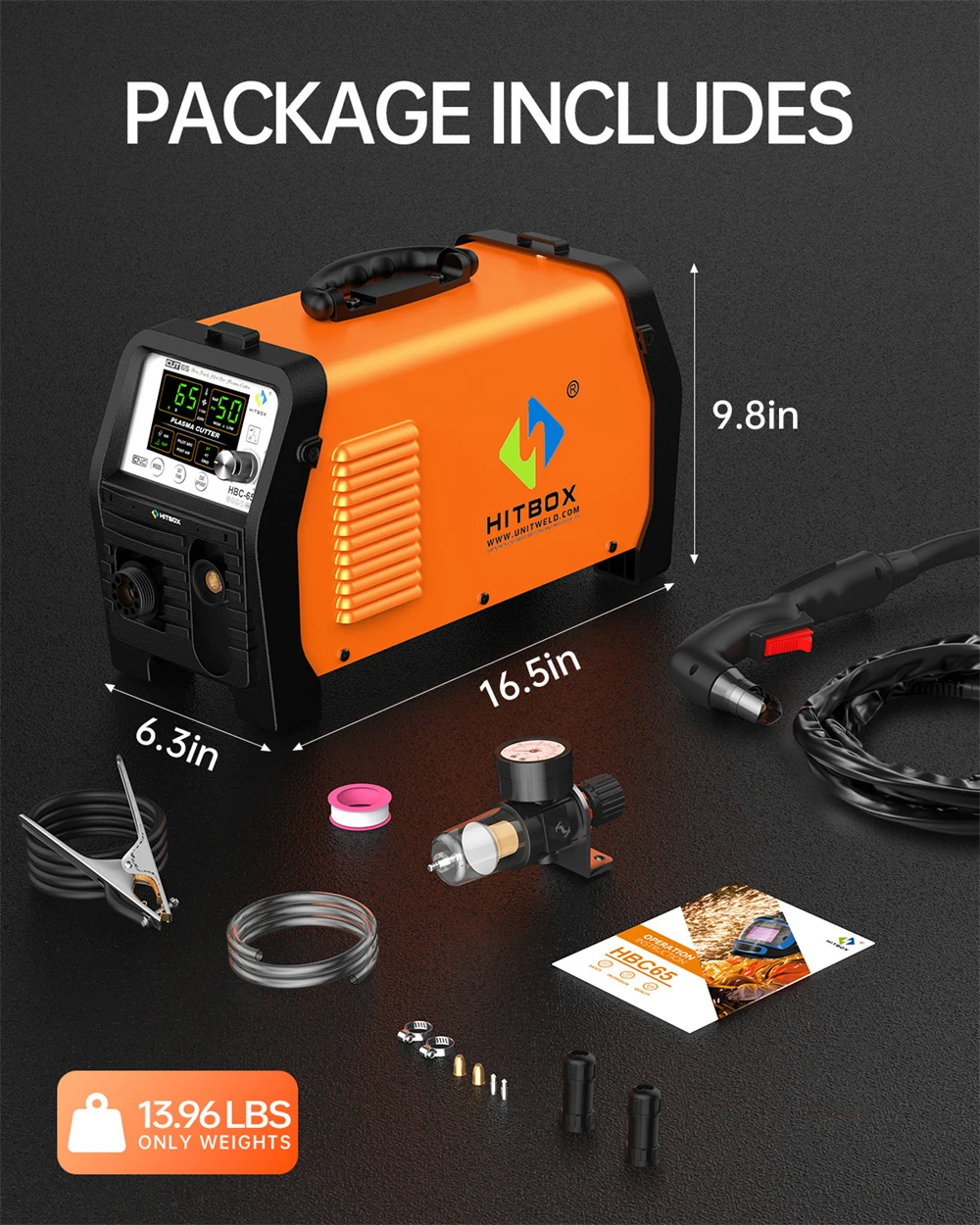

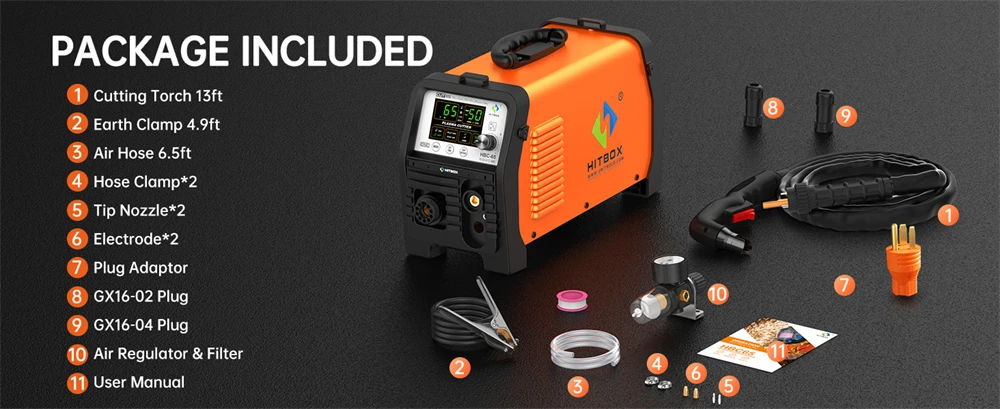

Package:

1x HBC65 Cutting Machine

1x Cutting Torch 13ft

1x Earth Clamp 4.9ft

1x Air Hose 6.5ft

2x Hose Clamp

2x Tip Nozzle

2x Electrodes

1x GX16-02 plug

1x GX16-04 plug

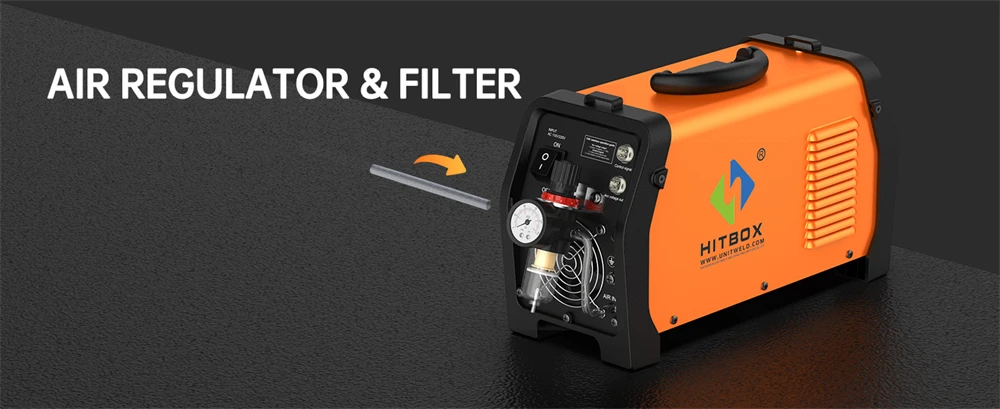

1x Air Regulator & Filter

1 Roll 4 meters raw material tape
